Gates & Fittings: Post Hinge Set
Gates & Fittings
PDF

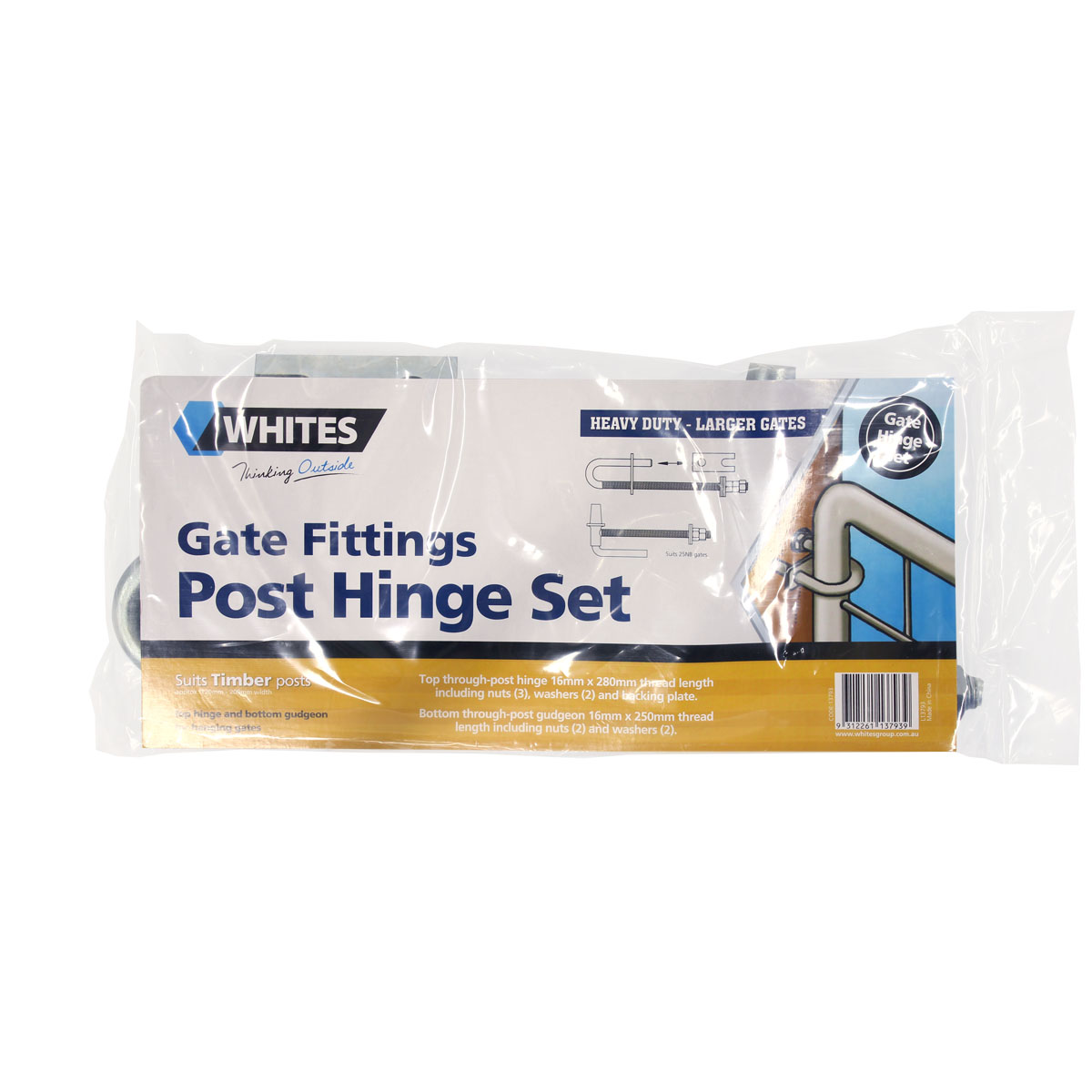

13793 - gate fitting post hinge set

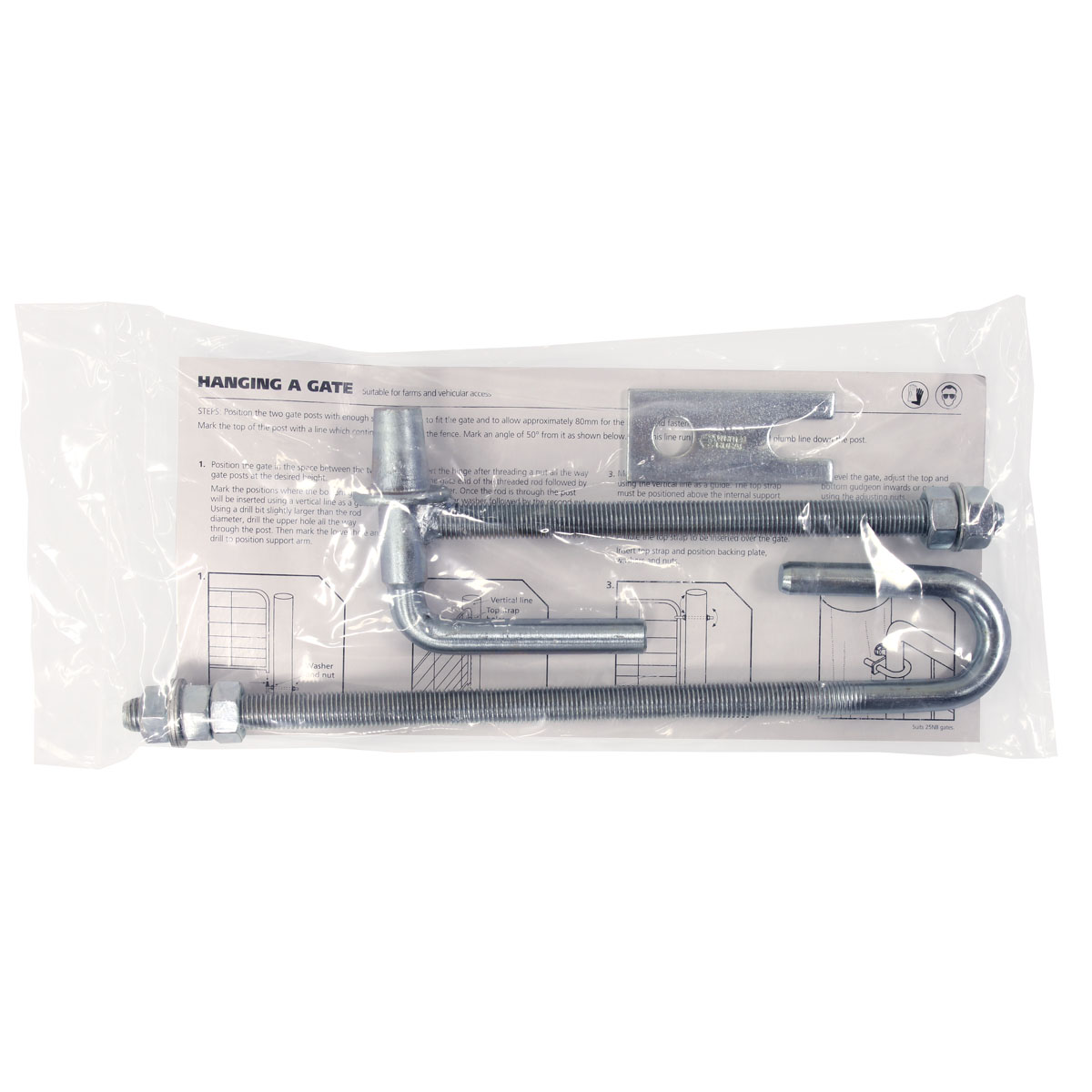

13793 - gate fitting post hinge set - back

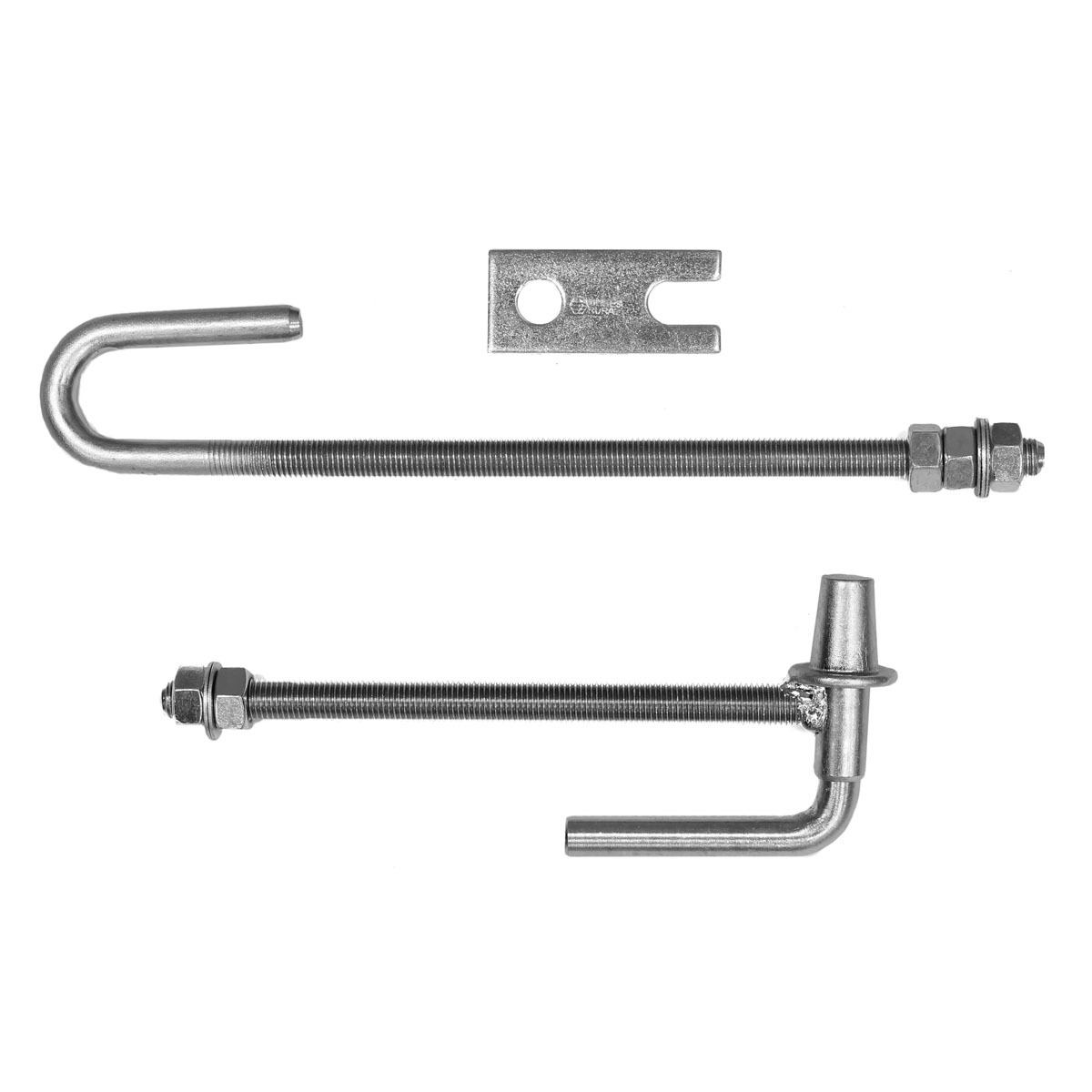

13793 - gate fitting post hinge set (components)

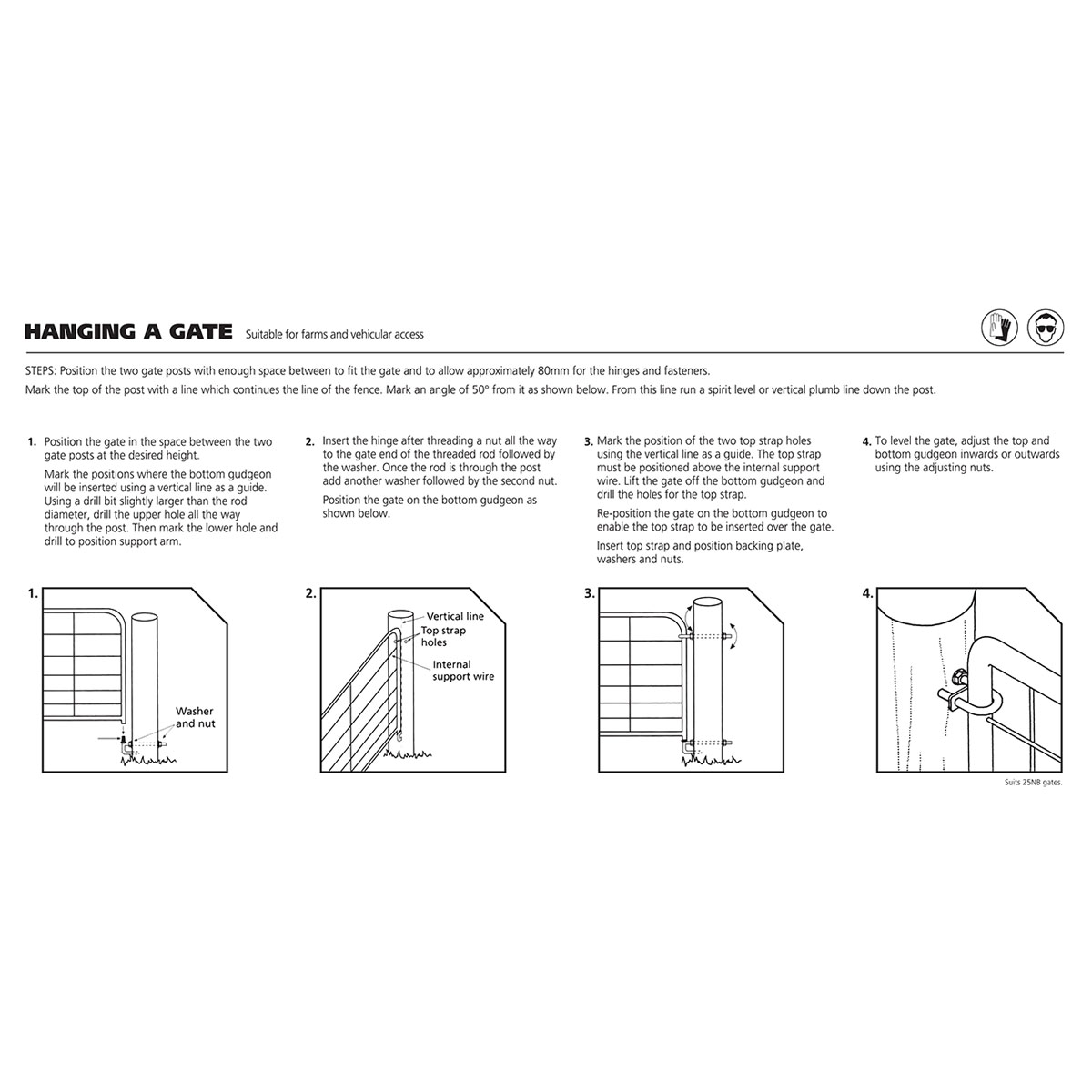

13793 - post hinge set instructions

Post Hinge Set

CATEGORY: Gates & Fittings Array
• Gate hinge set - for larger gates
• Suits timber posts & 25NB gates
• Heavy Duty
• Available at selected Bunnings stores only - Please check with your local store.

heavy duty - for larger gates

Whites Post Hinge Set is perfect for larger gates that are used for farm and vehicular access. It is suitable for timber posts (approximately 120mm-200mm width) and 25NB gates.

The set includes the following:

  • top through-post hinge 16mm x 280mm thread length
    • nuts x 3
    • washers x 2
    • backing plate x 1
  • bottom through-post gudgeon 16mm x 250mm thread length
    • nuts x 2
    • washers x 2

 For detailed instructions, please view the image gallery above.



Code Product Description MOQ Barcode
13793 Post Hinge Set 6 9312261137939

Not all products available in all areas of Australia.
