FG20 Drop Latch

CATEGORY: Gates & Fittings Array
• Gate pack for locking gates
• 12mm drop latch & eyelet, with chain
• Comes with top & bottom hinge assemblies
• Available at selected Bunnings Western Australia only. Please check with your local WA store.

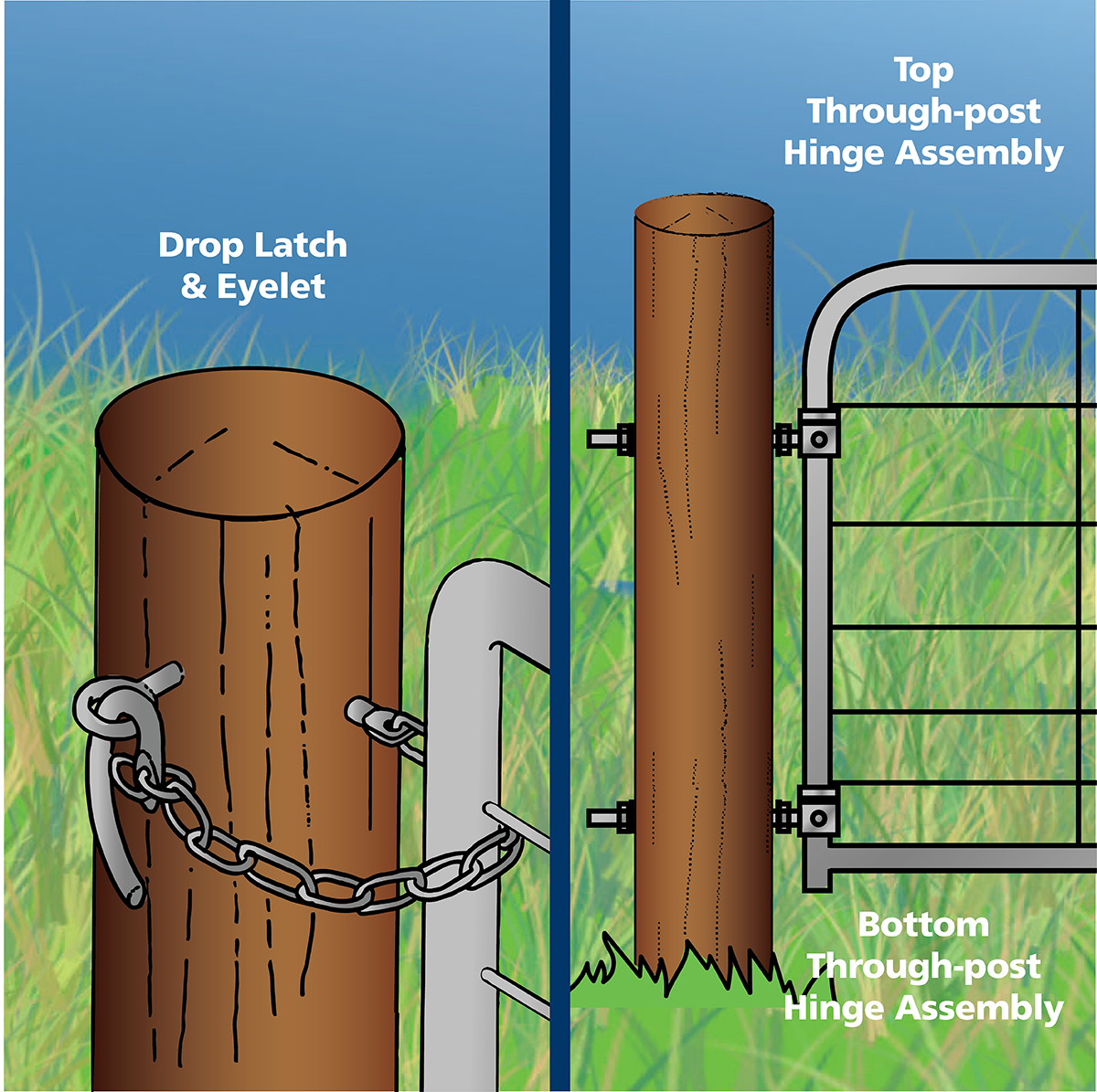

FG20 drop latch - FOR collared gates

Whites FG20 Drop Latch is made specifically for collared gates typically used in Western Australia.

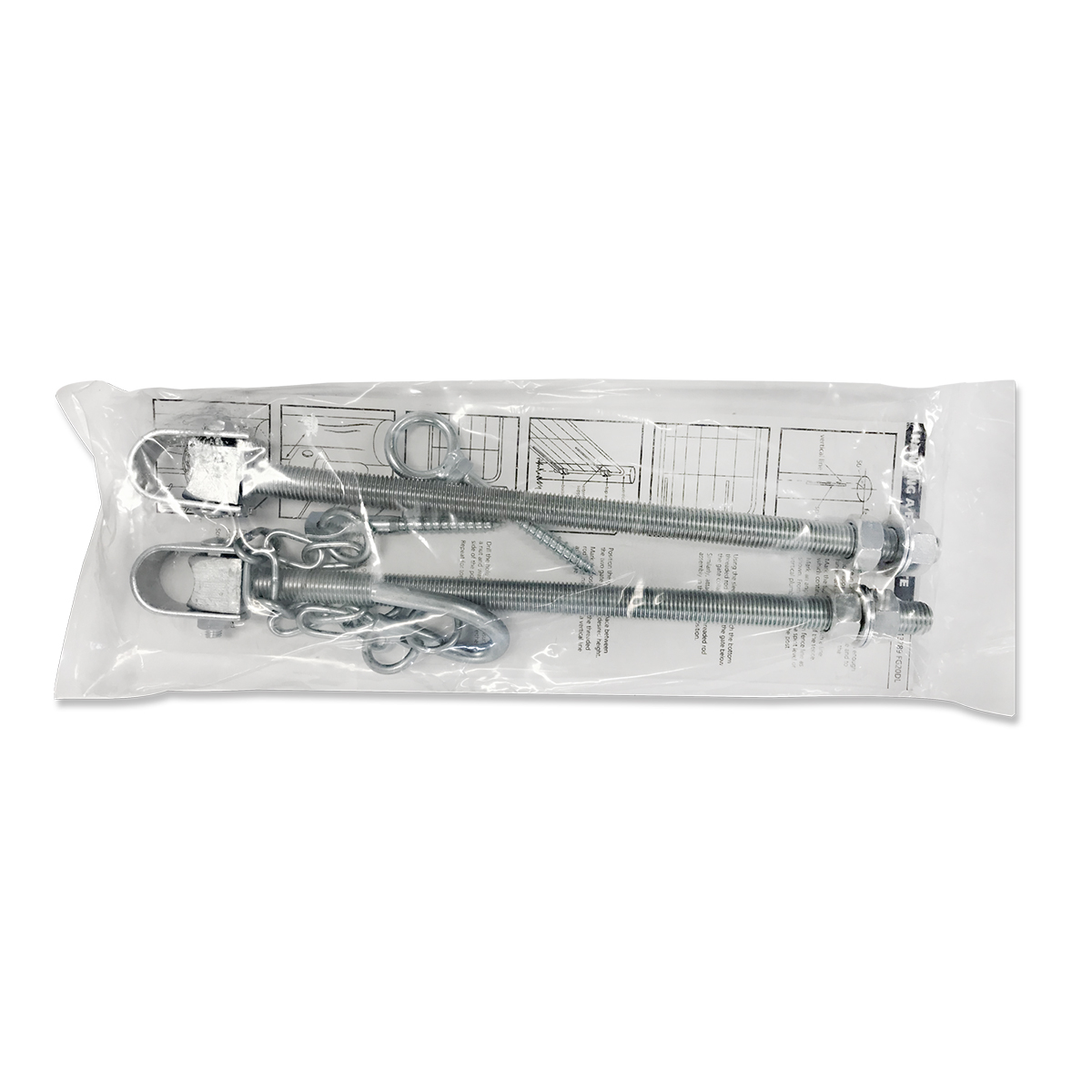

Featuring a screw-in 12mm drop latch and eyelet with chain, the pack includes: top and bottom through-post hinge assemblies with 20mm x 400mm thread, 2 x nuts and washers. Each assembly comes with a U-shaped hinge and a nut and bolt.

Also available in Ring Latch style.

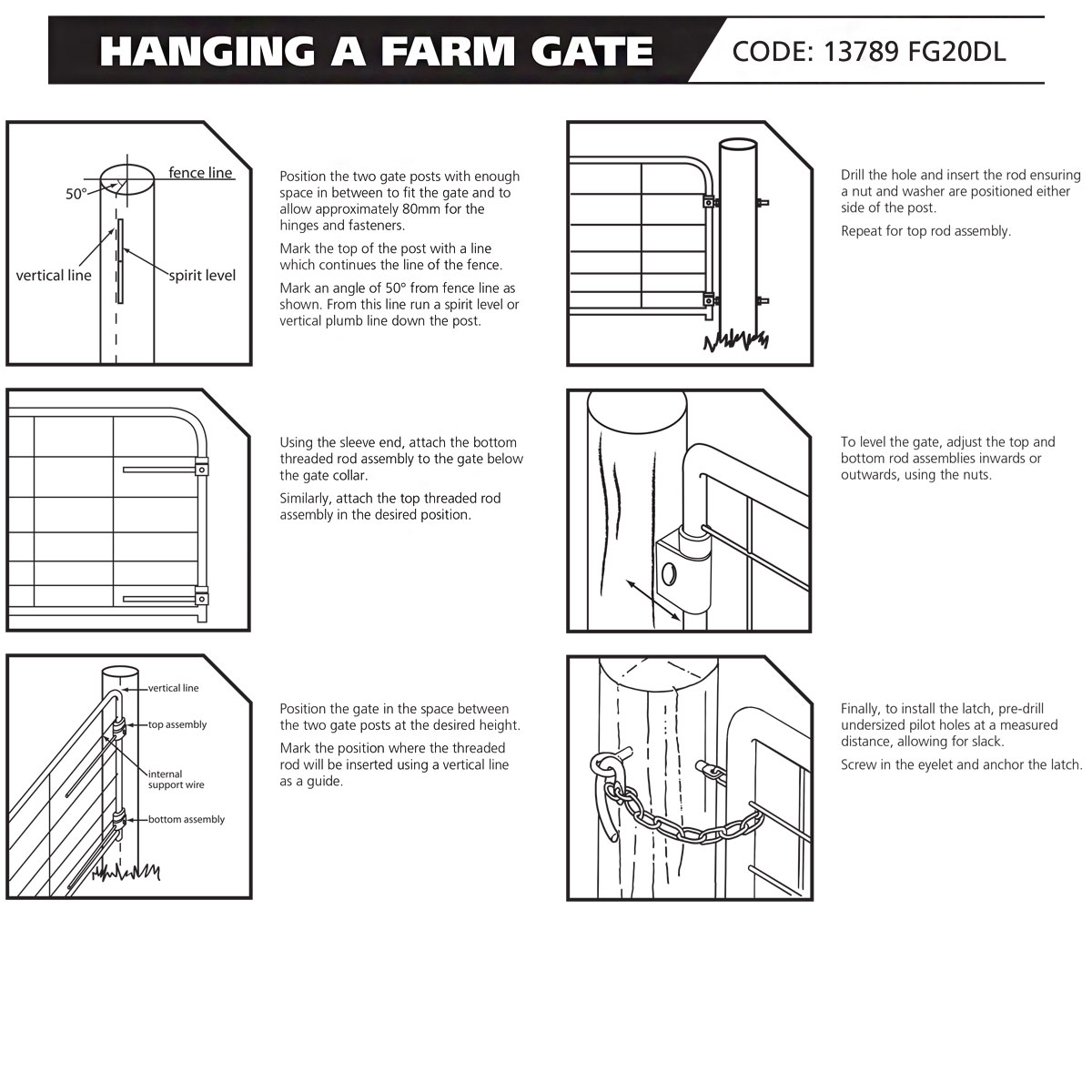

For full installation instruction, click on the image in the photo gallery.

Code Product Description MOQ Barcode
13789 FG20 Drop Latch pack* Bunnings trial only 9312261137892

* Available in New South Wales, South Australia & Victoria only

Not all products available in all areas of Australia.
