FG4 Drop Latch

CATEGORY: Gates & Fittings Array
• Gate pack for locking gates
• 12mm drop latch & eyelet, with chain
• Comes with top strap & bottom gudgeon
• Available at selected Bunnings New South Wales & Queensland only. Please check with your local NSW or QLD store.

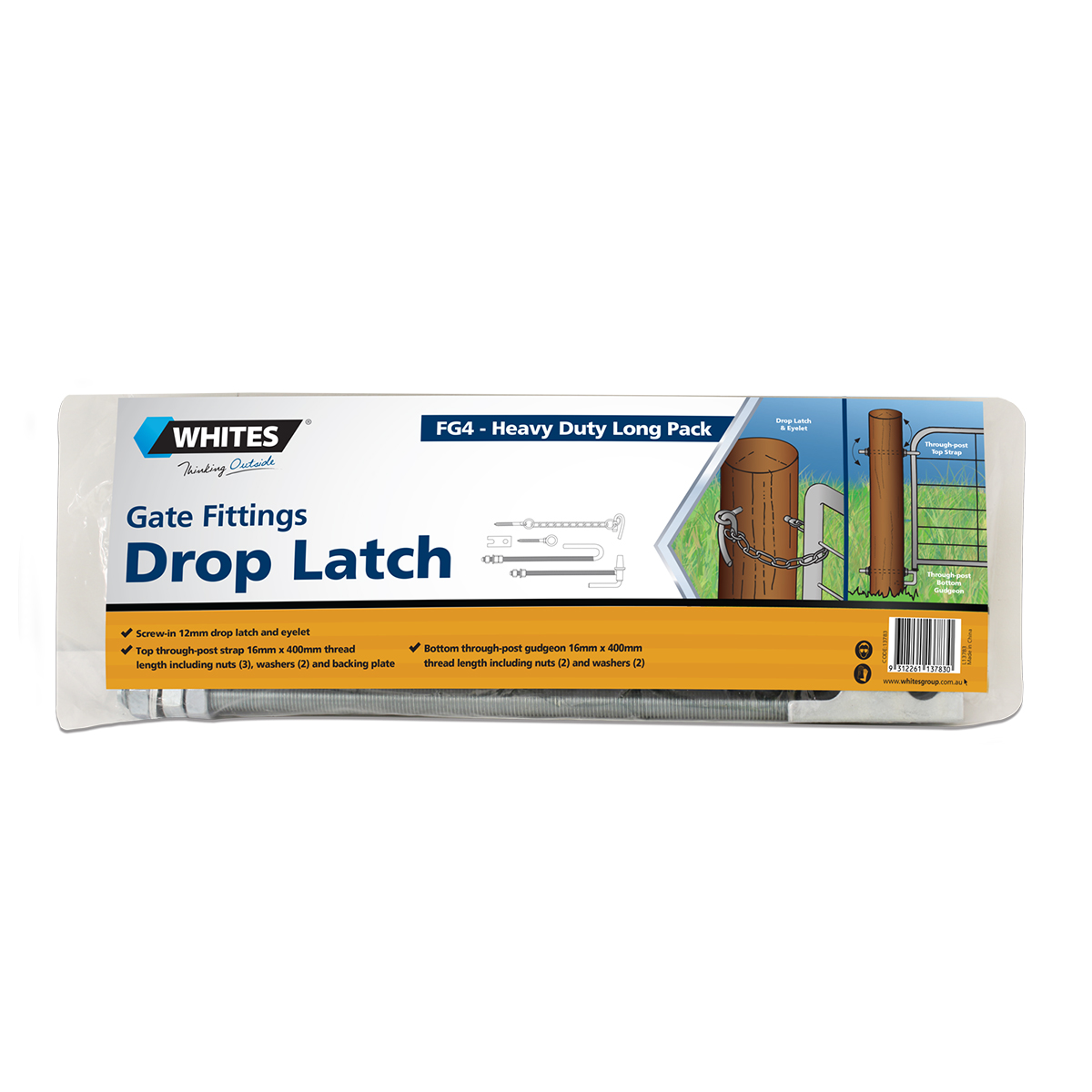

FG4 drop latch - Heavy duty long pack

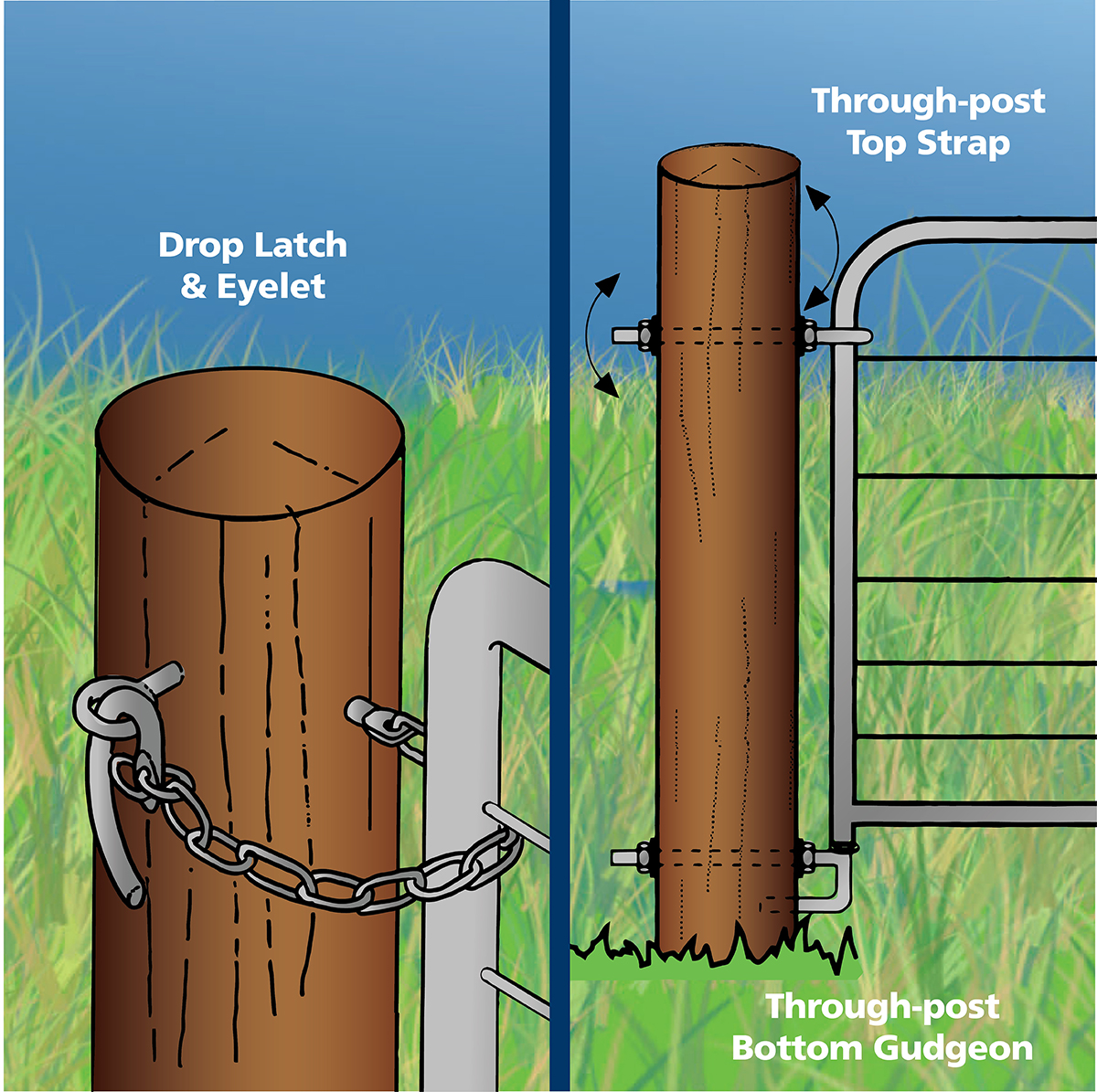

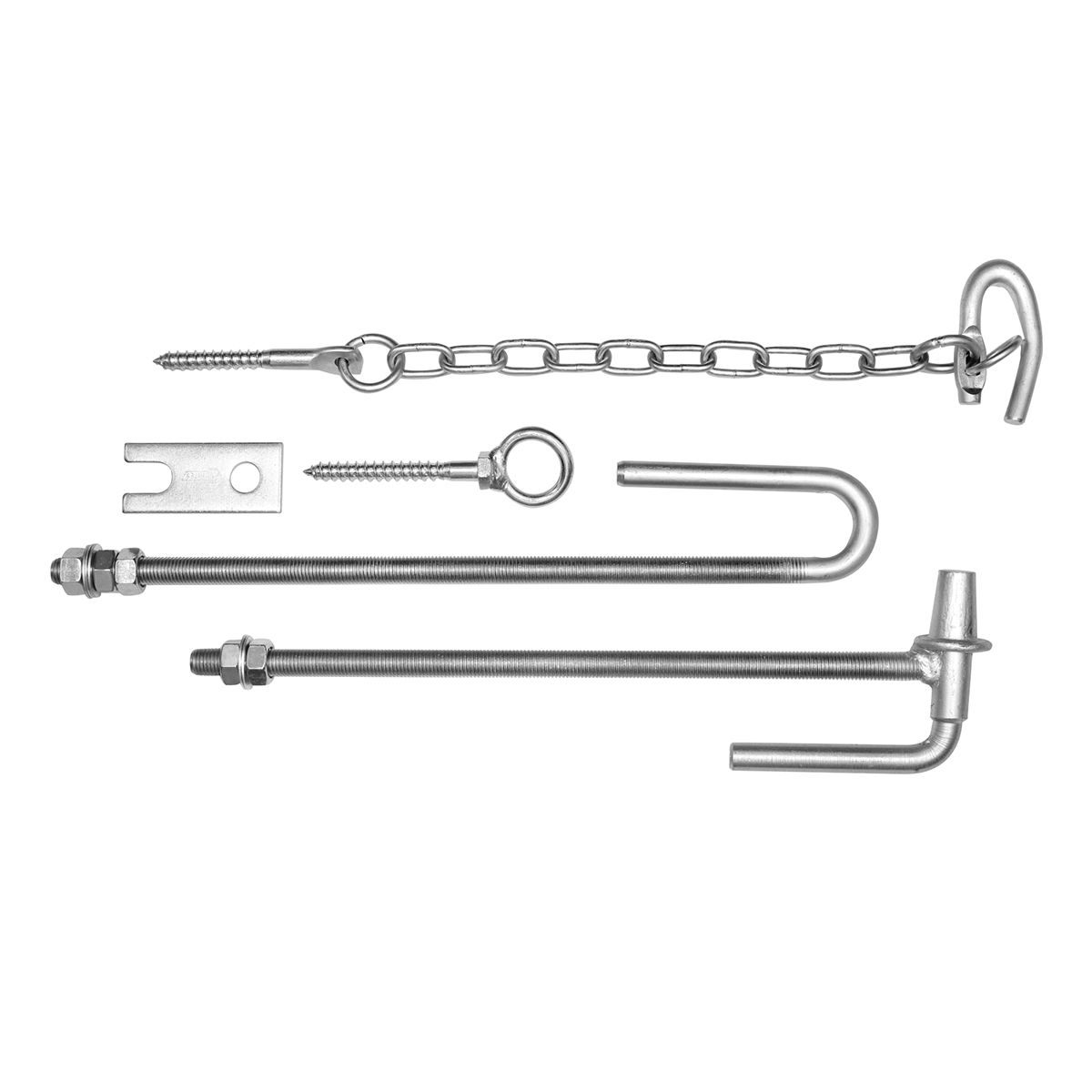

Whites FG4 Drop Latch is a convenient way for locking gates. Featuring a screw-in 12mm drop latch and eyelet with chain, the pack includes:

  • top through-post strap 16mm x 400mm thread length, 3 x nuts, 2 x washers and backing plate
  • bottom through-post gudgeon 16mm x 400mm thread length, 2 x nuts and 2 x washers

Also available in Ring Latch style.

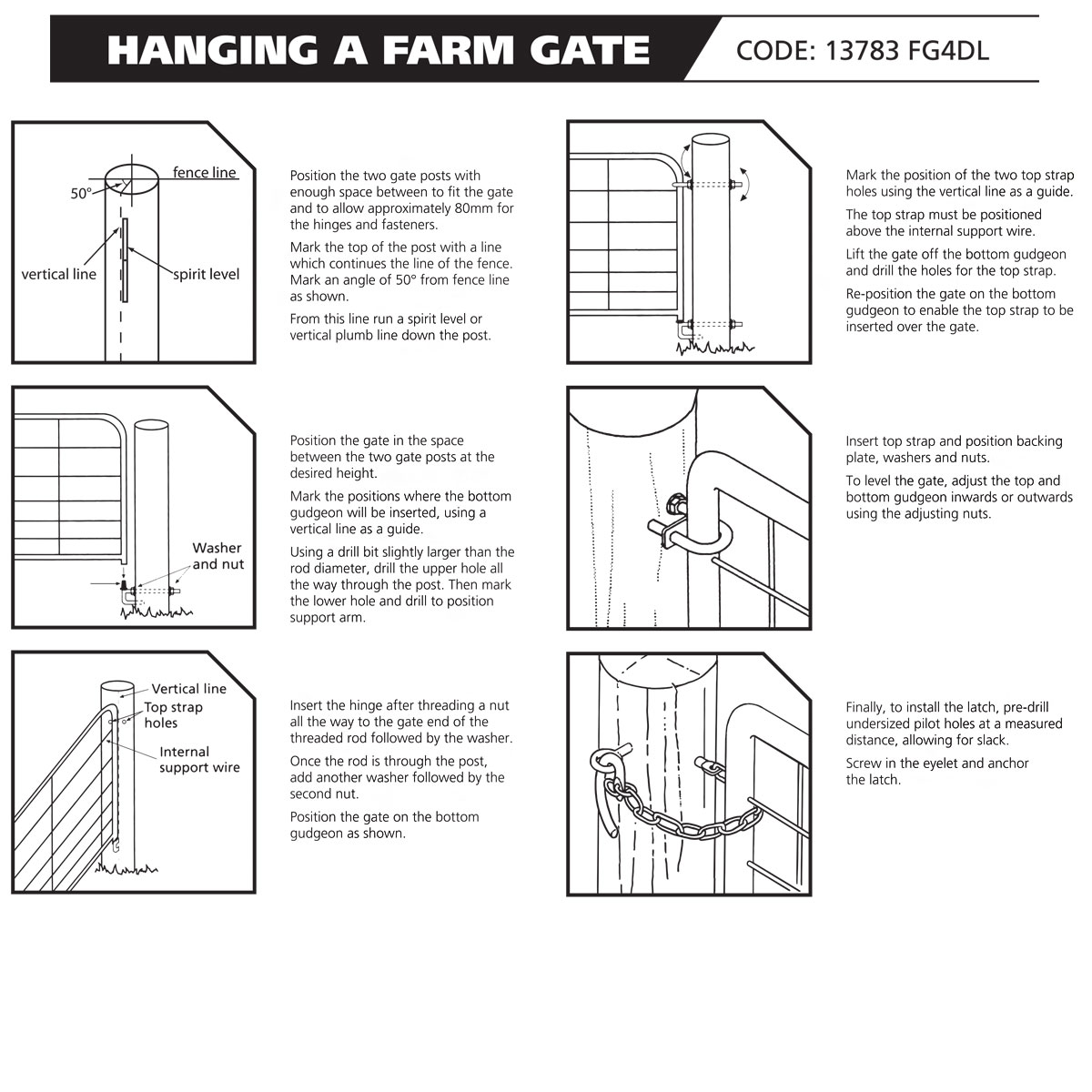

For full installation instruction, click on the image in the photo gallery.

Code Product Description MOQ Barcode
13783 FG4 Drop Latch pack* Bunnings trial only 9312261137830

* Available in New South Wales & Queensland only

Not all products available in all areas of Australia.
