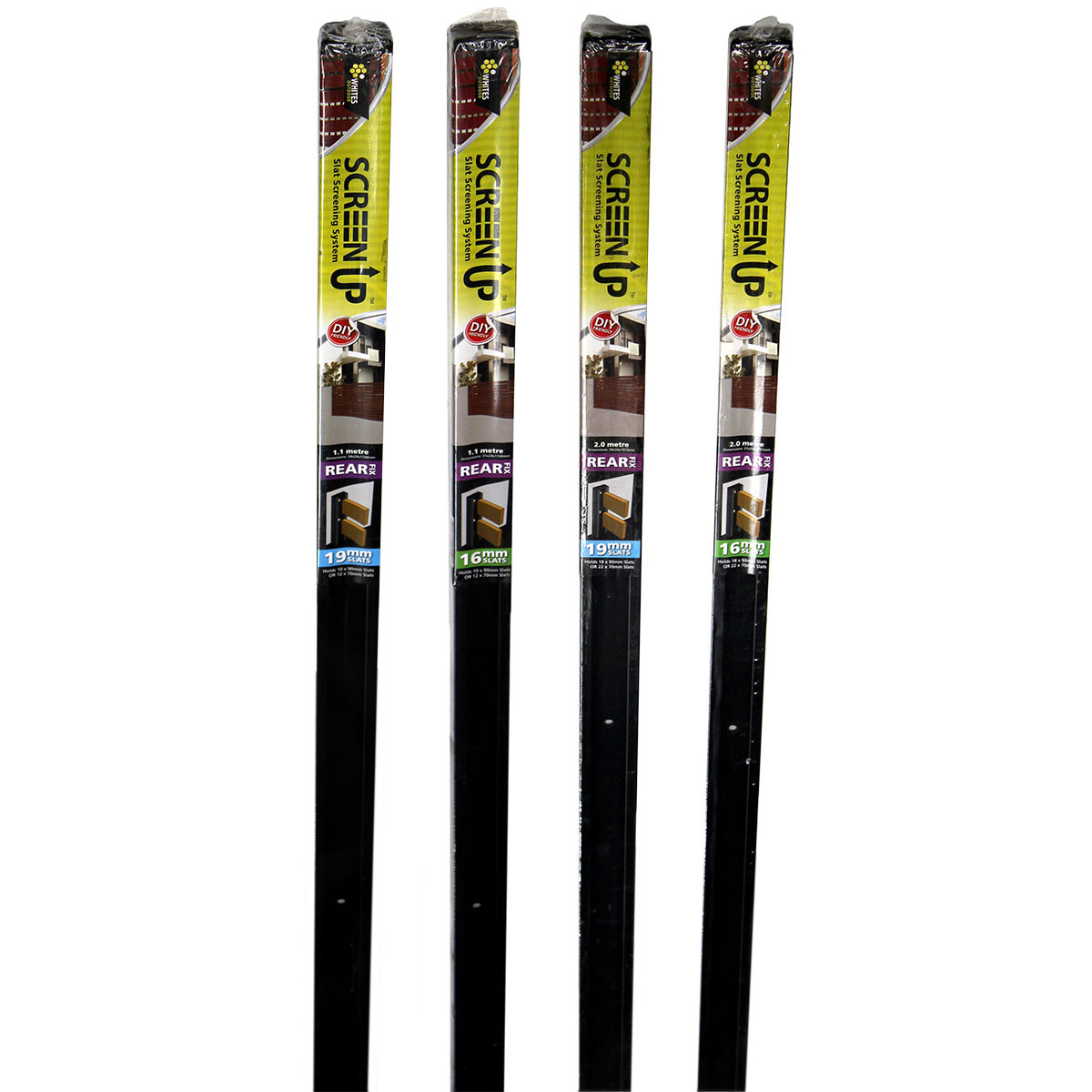

screen up - rear fix range

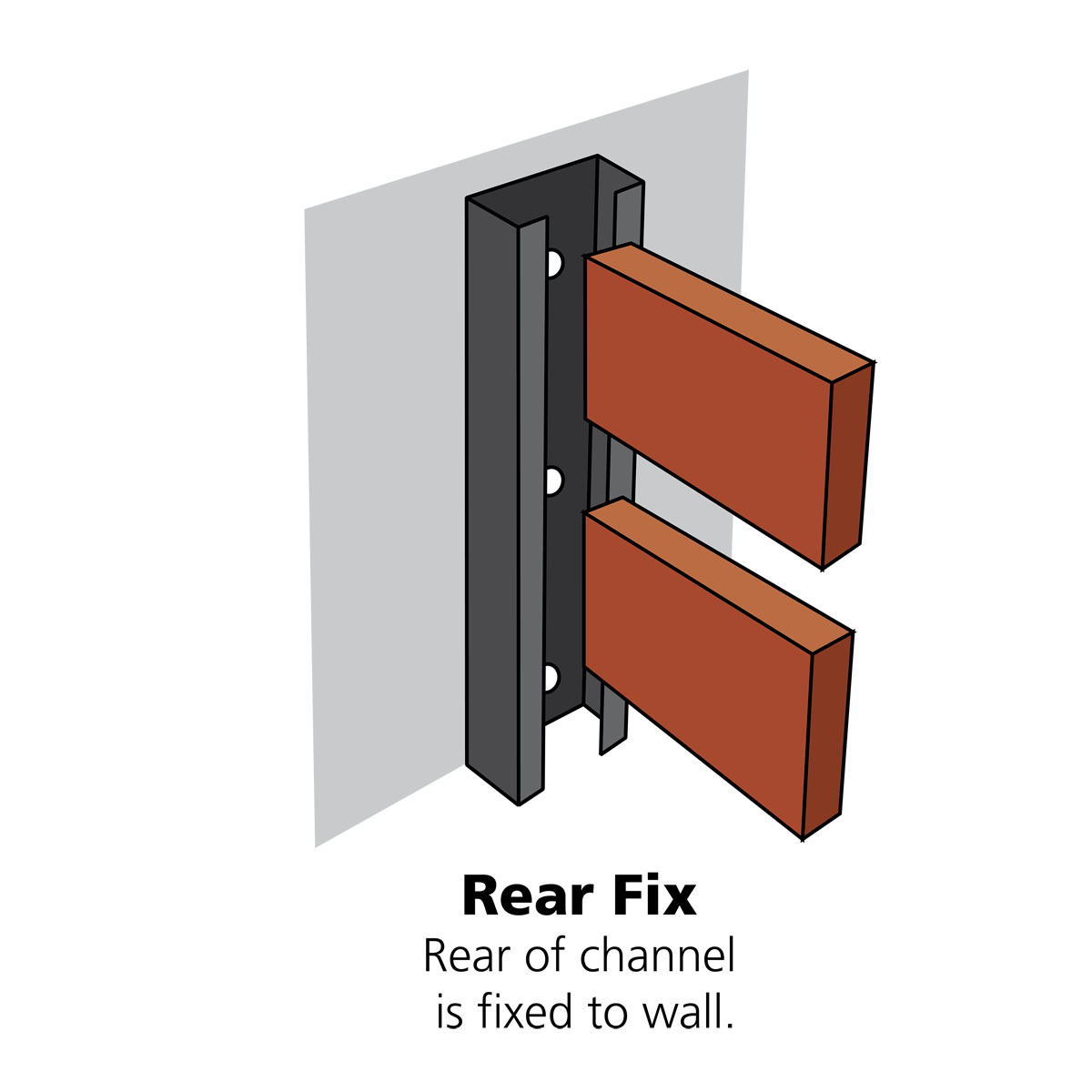

screen up rear fix3
screen-up-components7

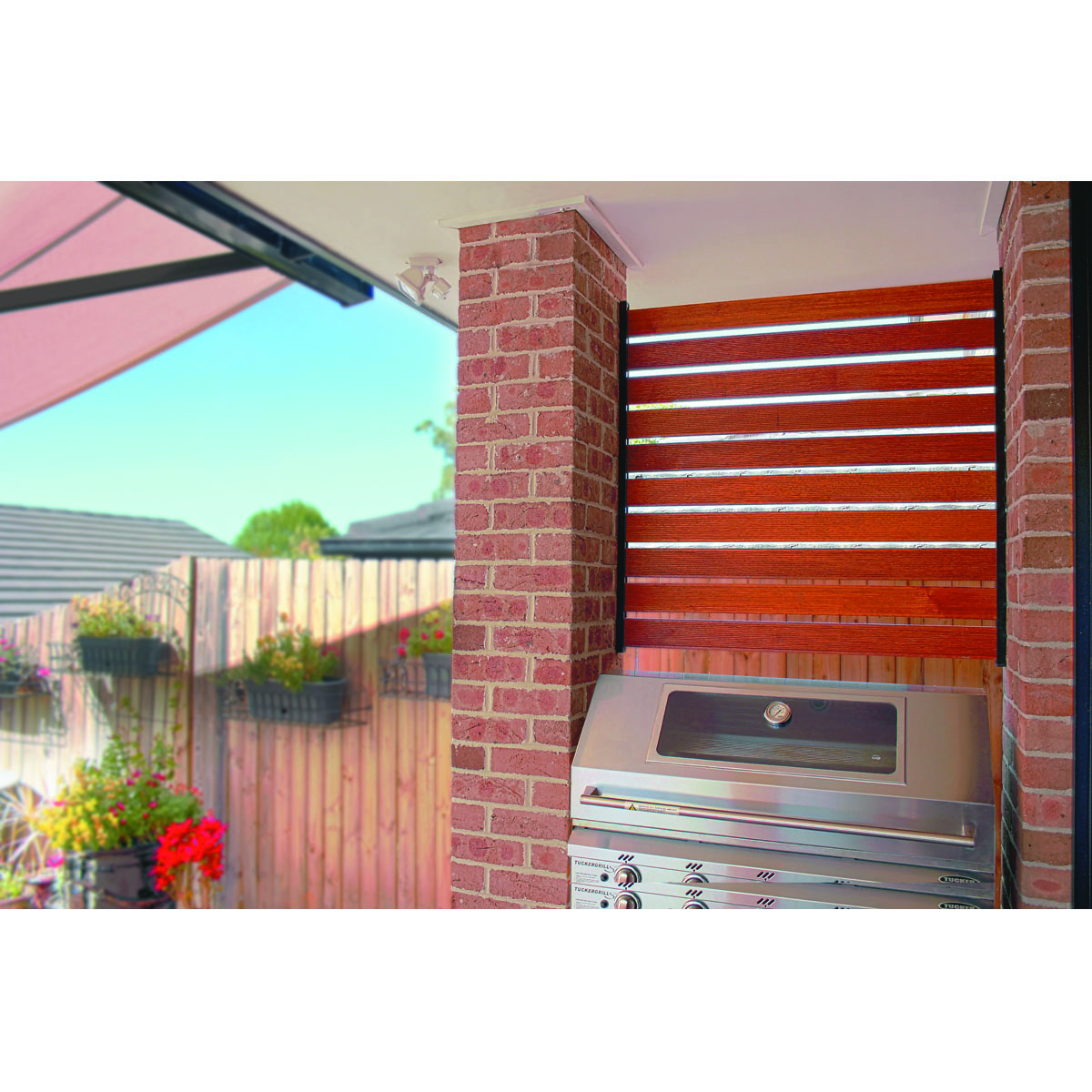

screen up -rear fix in-situ

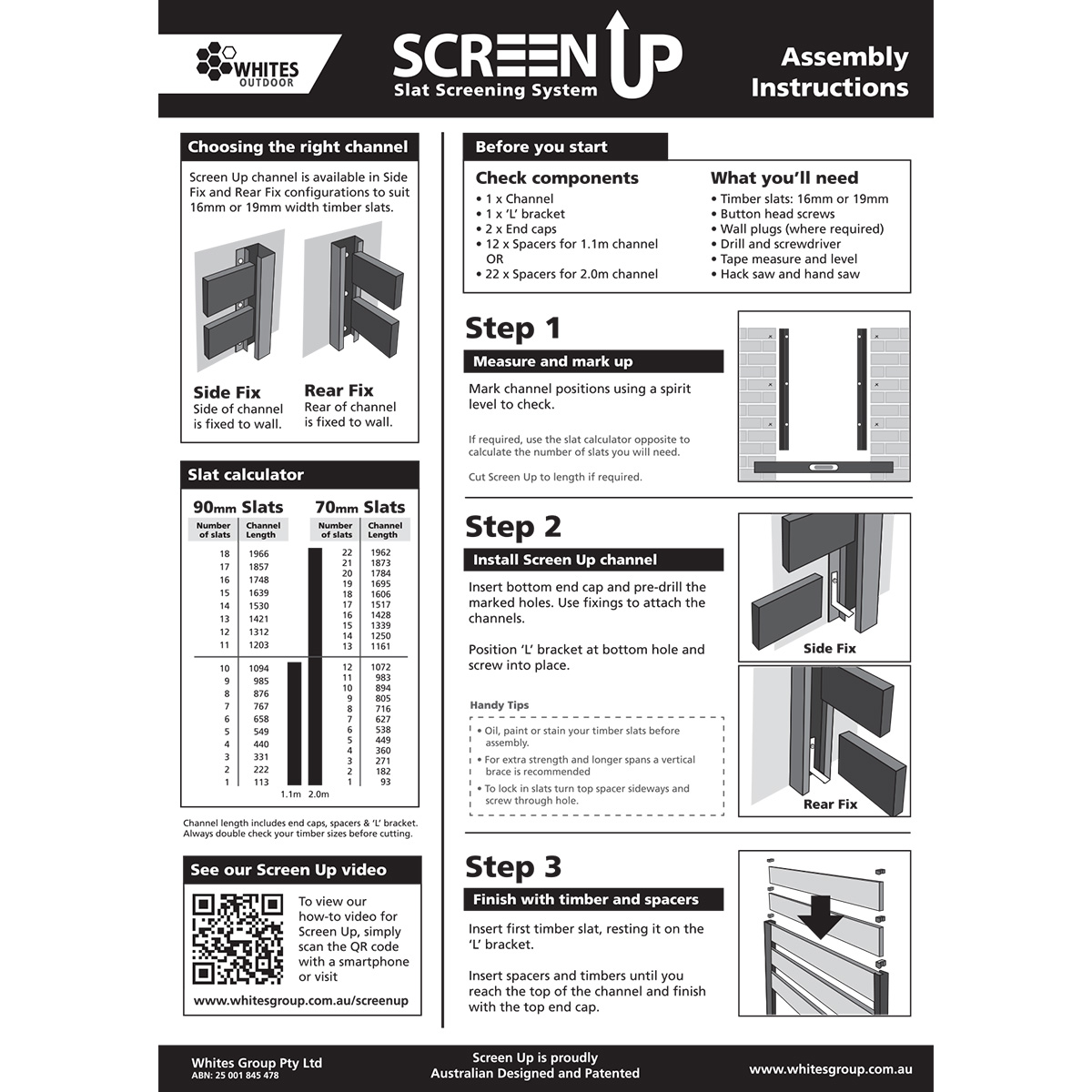

screen up wall mount instructions4

Screen Up Wall Mount - Rear Fix Channel

CATEGORY: Screen Up Wall Mount Array
• Quick and easy with a professional look
• A better way to build your own privacy screens
• Long-life aluminium

A BETTER WAY TO BUILD PRIVACY SCREENS

Whites Screen Up Wall Mount captures the natural beauty of timber with professional looking results. This easy to install screening system is made from a strong and durable aluminium channel and allows you to choose any colour or type of slats you prefer, to make a quick and professional looking screen for your home or office. The channels fix directly to existing walls and posts. Available in Black.

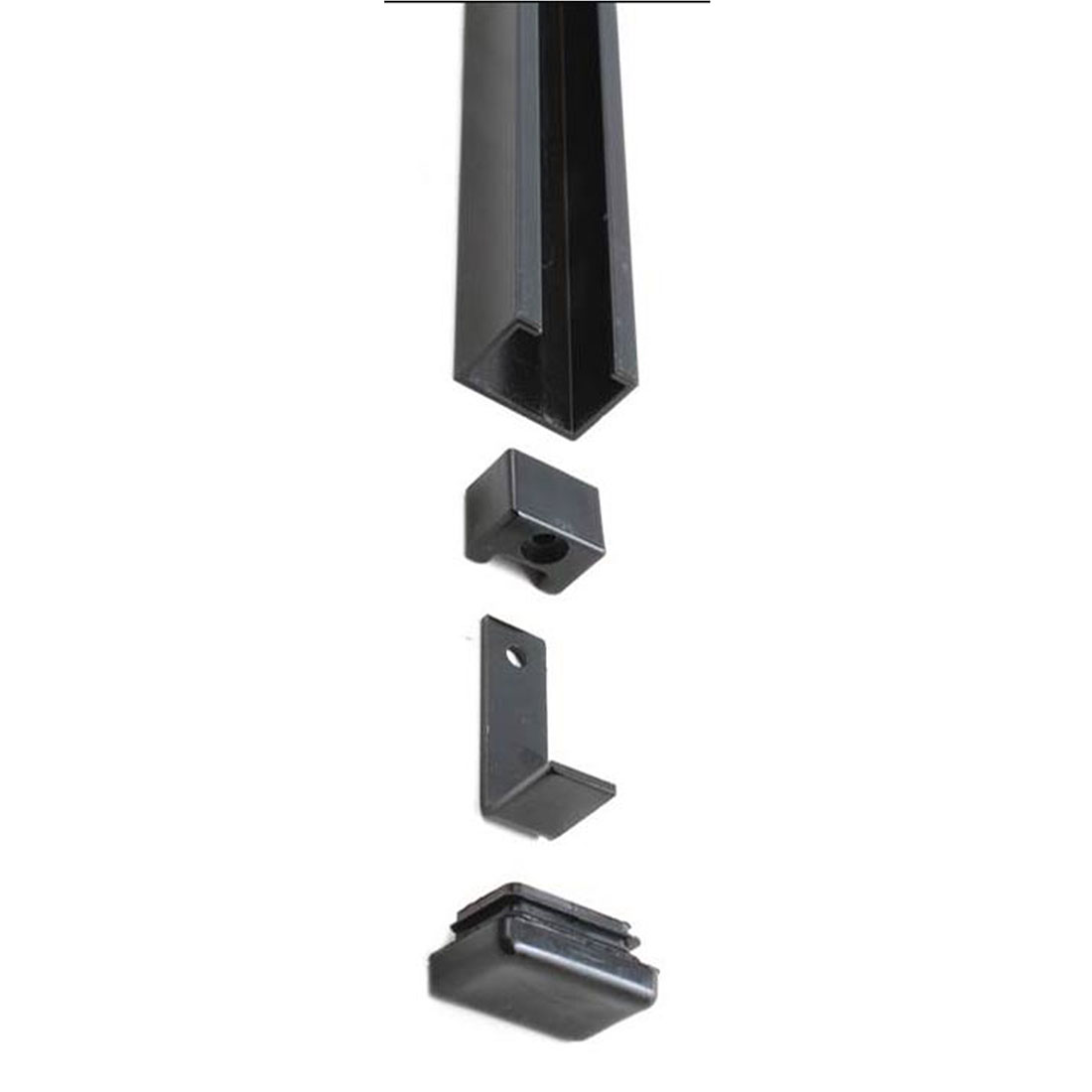

Each pack comes with step-by-step assembly instructions and contains:

• Wall-Mount Channel (x1)
• 20mm Spacers (x22 for 2m OR x12 for 1.1m)
• End Caps (x2)
• "L" Bracket (x1)

As a general guide, the 2m post will hold 18 slats @ 90mm width or 22 slats @ 70mm width; the 1.1m post will hold 10 slats @ 90mm width or 12 slats @ 70mm width.

CodeProduct DescriptionChannel LengthMOQBarcode
16910Screen Up Wall Mount - 16mm Rear Fix
1100mm
12
9312261169107
16912Screen Up Wall Mount - 16mm Rear Fix
1975mm
12
9312261169121
16914Screen Up Wall Mount - 19mm Rear Fix
1100mm
12
9312261169145
16916Screen Up Wall Mount - 19mm Rear Fix1975mm129312261169169

Handy Hints:

• For greater privacy, or the slimline look, use Screen Up Slimline Spacers (16871) that provide a 10mm gap between slats (regular gap 20mm).
• Button head screws (15mm) are recommended for channels and "L" brackets.
• Use with Screen Up Freestanding to extend your screen beyond existing walls and posts. Both freestanding and wall-mount systems fit together perfectly to create an integrated privacy screen.

Not all products available in all areas of Australia.
