Retain-iT® 50mm System

CATEGORY: Aust only Array
• Converts timber sleepers into timber retaining walls up to 800mm high
• 50mm system suits all 50mm timber sleepers
• High tensile, galvanised for long life
• Heavy duty, robust steel construction

HEAVY DUTY RETAINING POST SYSTEM

Easy to use solution for creating solid, aesthetically pleasing retaining walls from timber sleepers

Whites Retain-iT provides a snug fit so that the sleeper is dropped in and immediately secure. No packing or fastening is required.

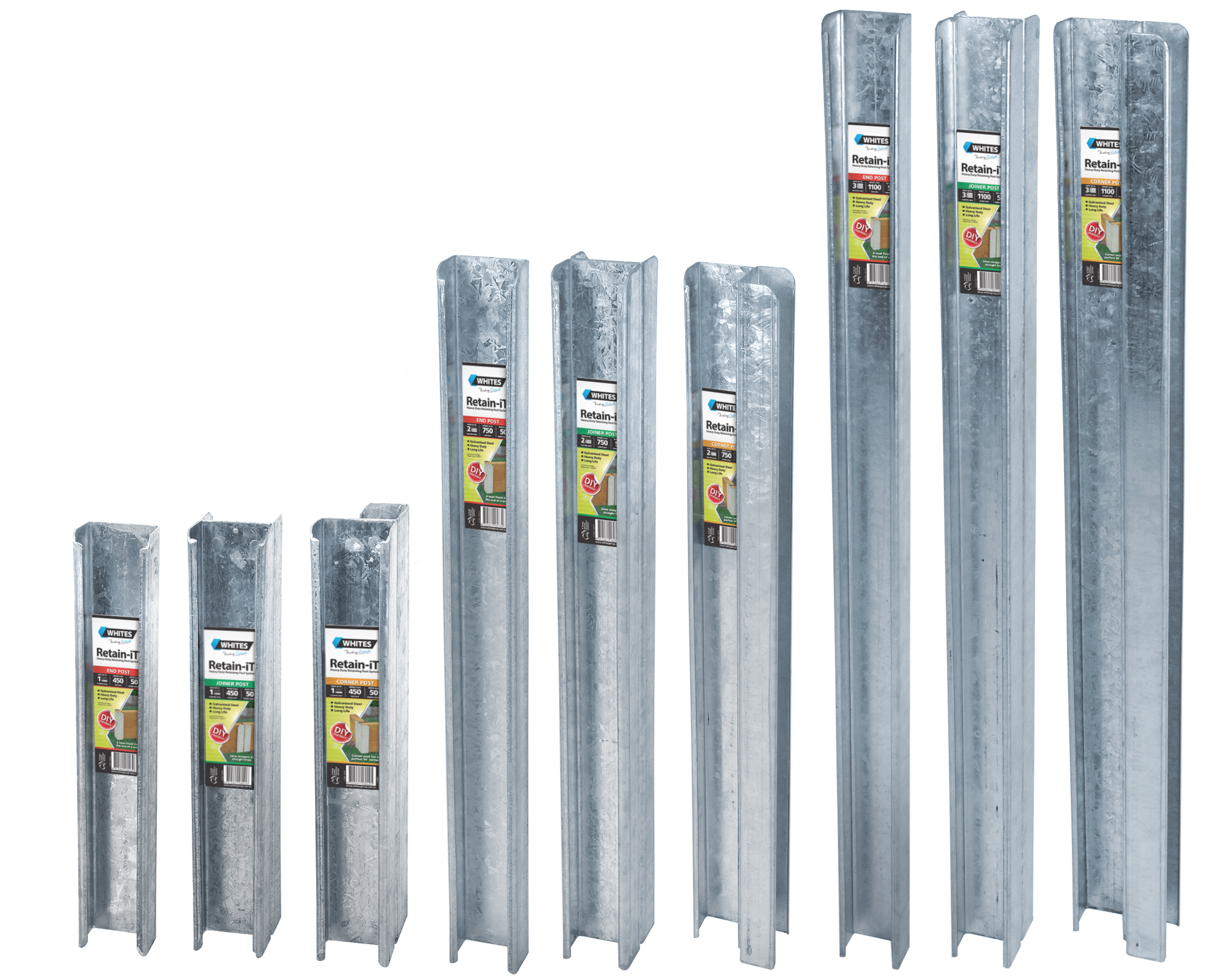

Available in three configurations:

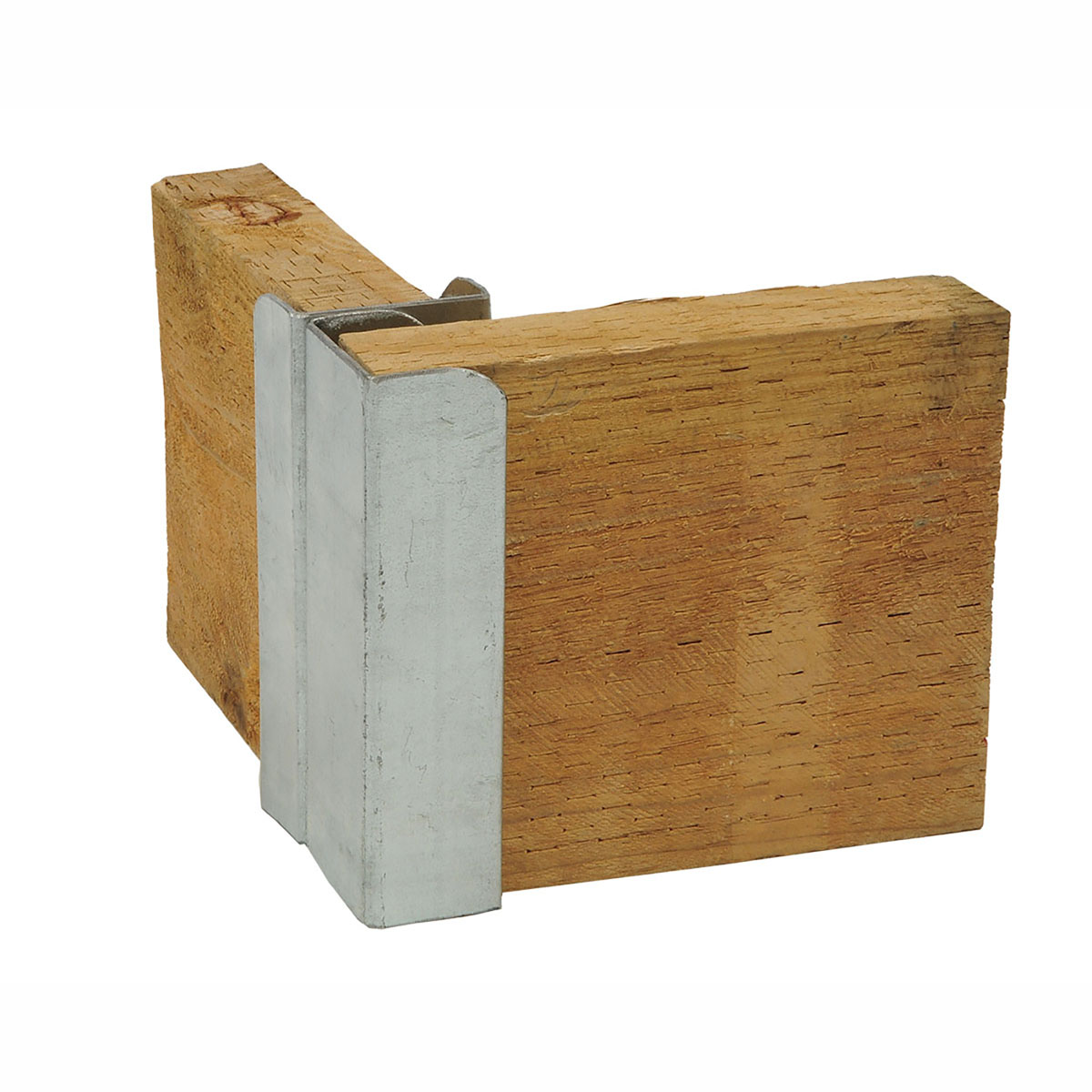

    • Corner Post - for perfect 90° corners

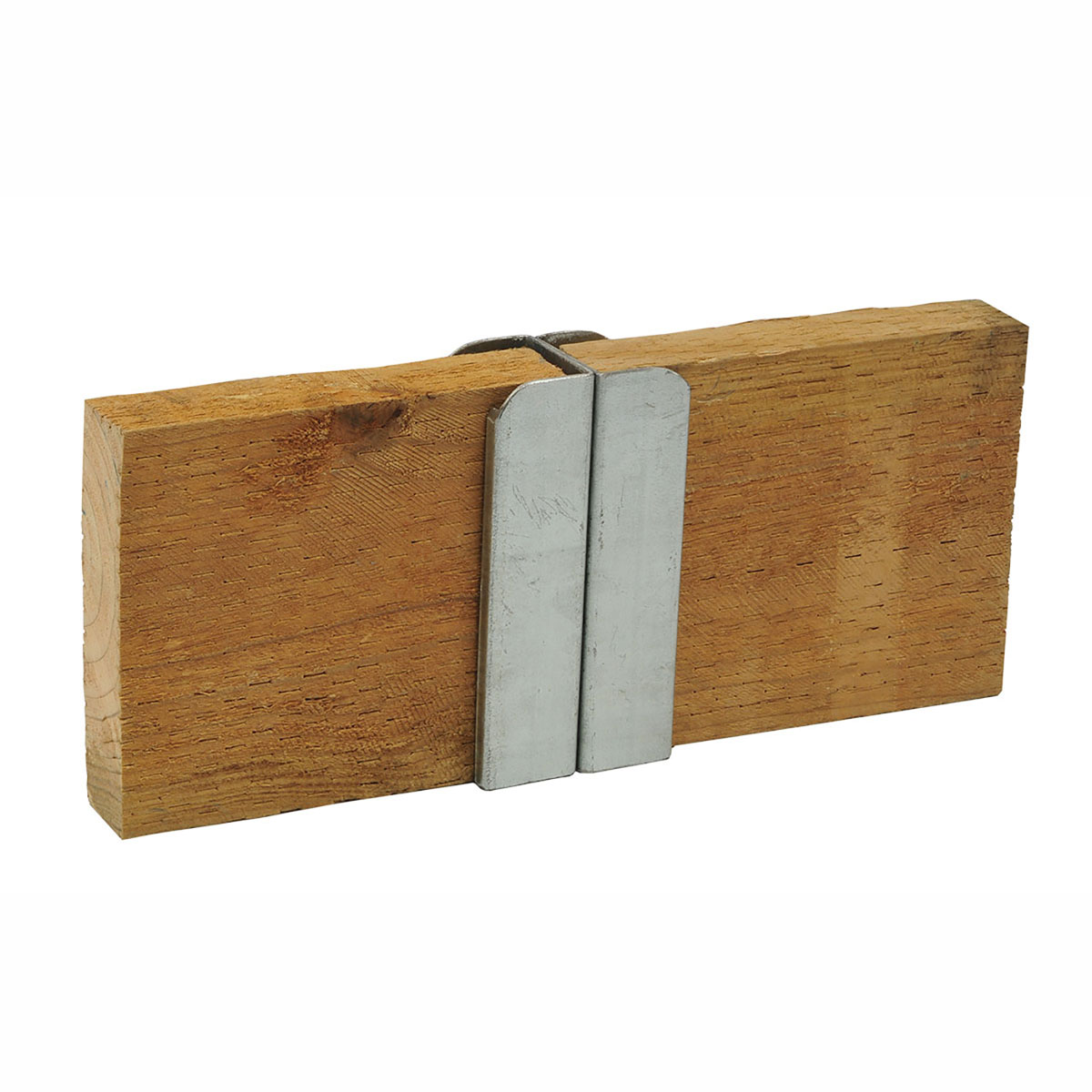

    • Joiner Post - for joining sleepers in a straight line

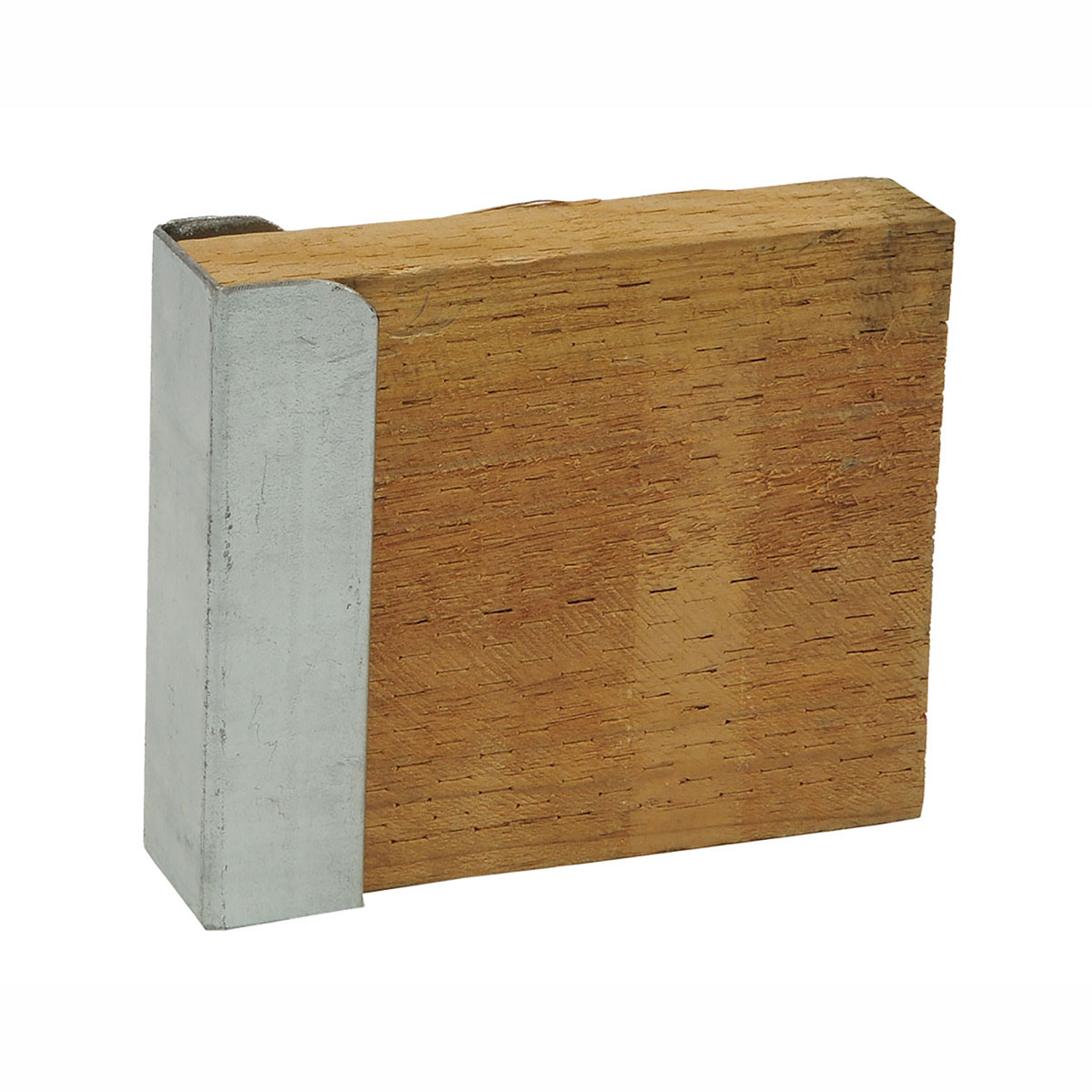

    • End Post - for a neat finish to your wall

As functional as it is beautiful, the system has the strength and long-life of high tensile, galvanised steel and is flexible enough to cater to single, double, triple and quadruple sleeper heights.

Retain-iT 50mm systems suit timber sleepers that are 50mm wide. For 75mm wide sleepers use, Retain-iT 75mm system.

For more information, videos and how to install Retain-iT, click here.



CodeProduct NameTo SuitMOQBarcode
16043Retain-iT 50mm System - 450mm End Post1 Sleeper19312261160432
16073Retain-iT 50mm System - 750mm End Post2 Sleepers19312261160739
16113Retain-iT 50mm System - 1100mm End Post3 Sleepers19312261161132

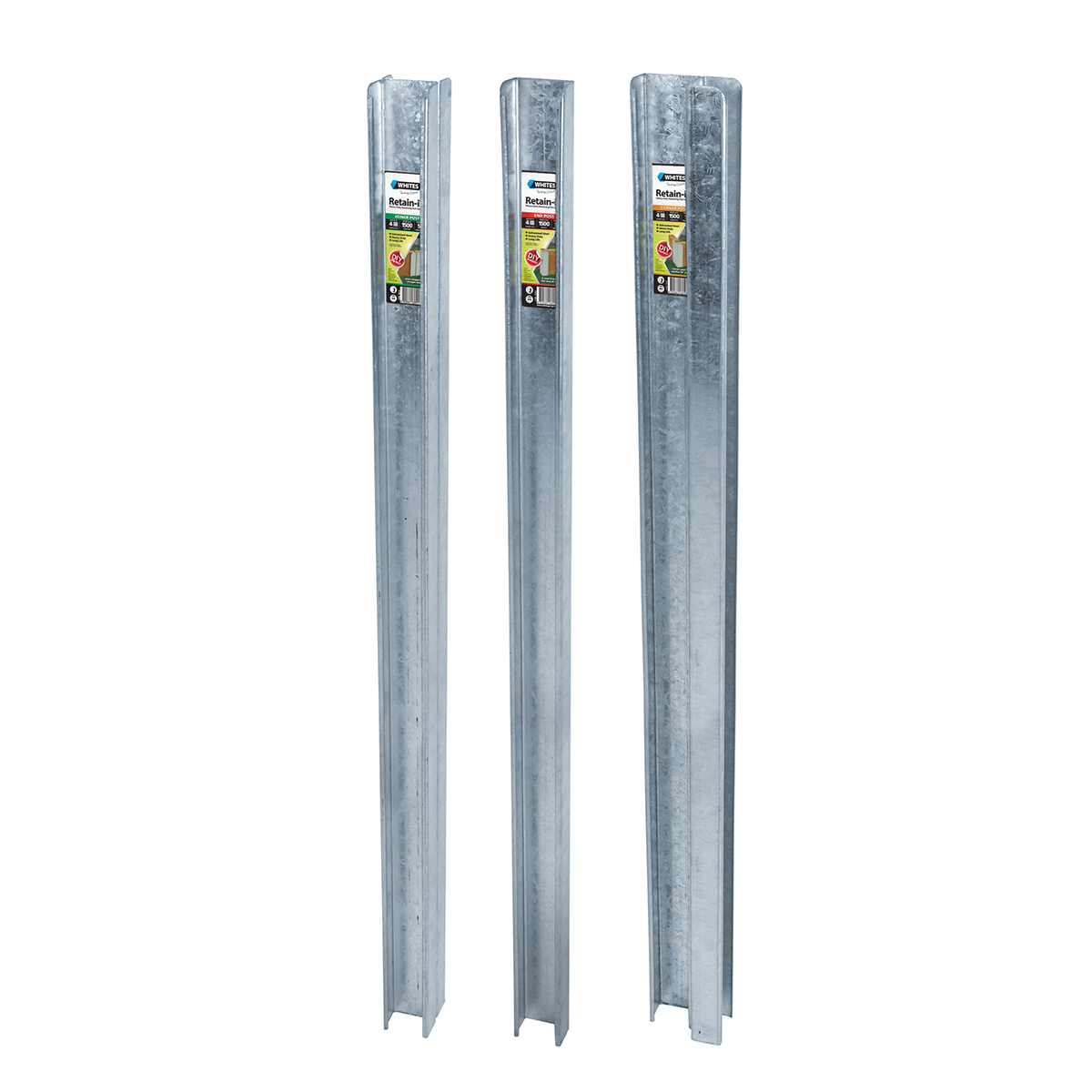

16253Retain-iT 50mm System - 1500mm End Post4 Sleepers19312261162535
16041Retain-iT 50mm System - 450mm Joiner Post1 Sleeper19312261160418
16071Retain-iT 50mm System - 750mm Joiner Post2 Sleepers19312261160715
16111Retain-iT 50mm System - 1100mm Joiner Post3 Sleepers19312261161118
16251Retain-iT 50mm System - 1500mm Joiner Post4 Sleepers19312261162511
16042Retain-iT 50mm System - 450mm Corner Post1 Sleeper19312261160425
16072Retain-iT 50mm System - 750mm Corner Post2 Sleepers19312261160722
16112Retain-iT 50mm System - 1100mm Corner Post3 Sleepers19312261161125
16252Retain-iT 50mm System - 1500mm Corner Post4 Sleepers19312261162528



Handy Hints:

    • Check with your local council for regulations regarding retaining walls.
    • When installing Retain-iT, concrete one post at a time adding sleepers as you go to ensure a straight wall
    • For a different look, add a layer of timber capping to the top of the wall - it makes for great seating too
    • Designed with 15° tolerance, so you can create 'curved' walls at special angles
