Building Ties: Wall Ties
Building Ties
PDF

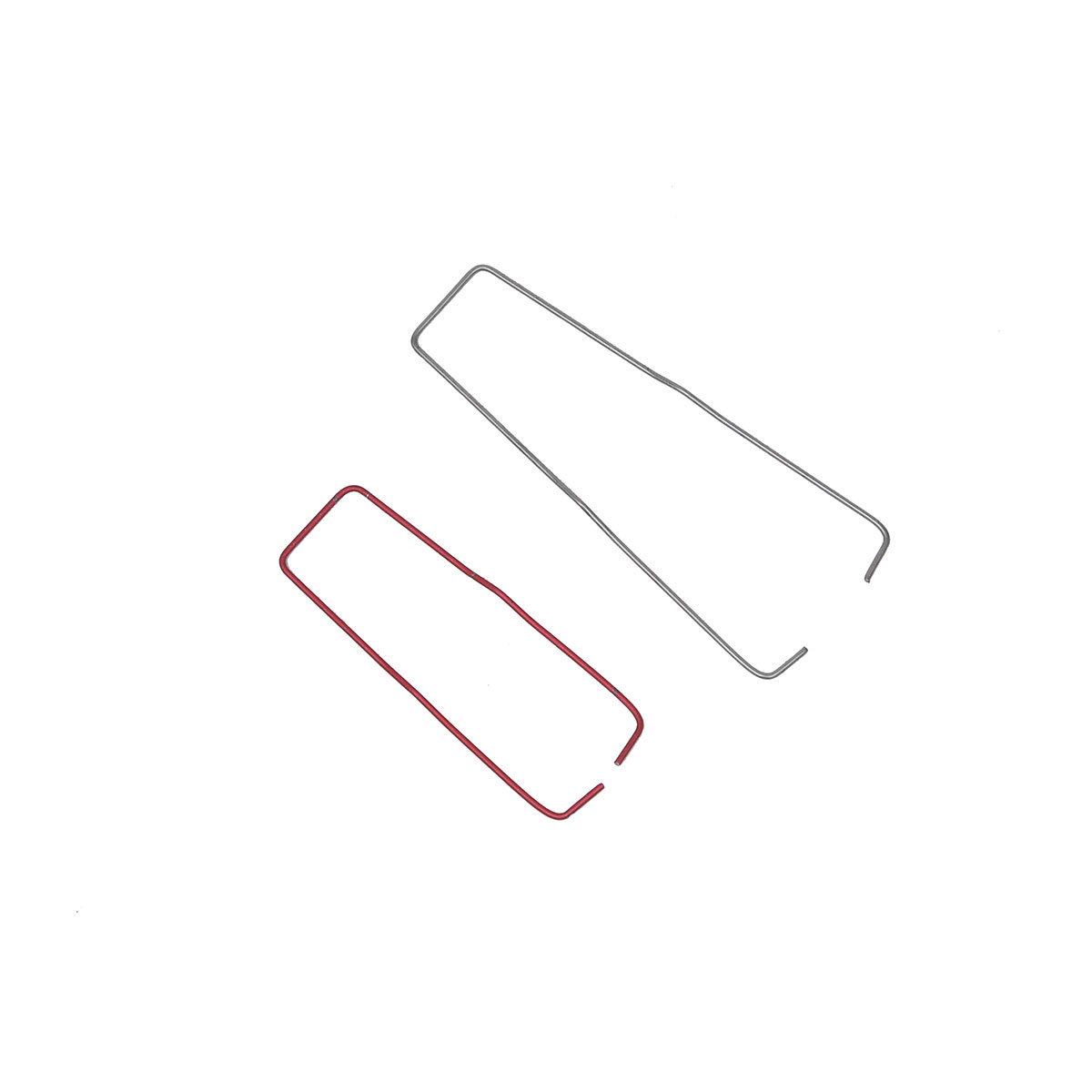

wall ties

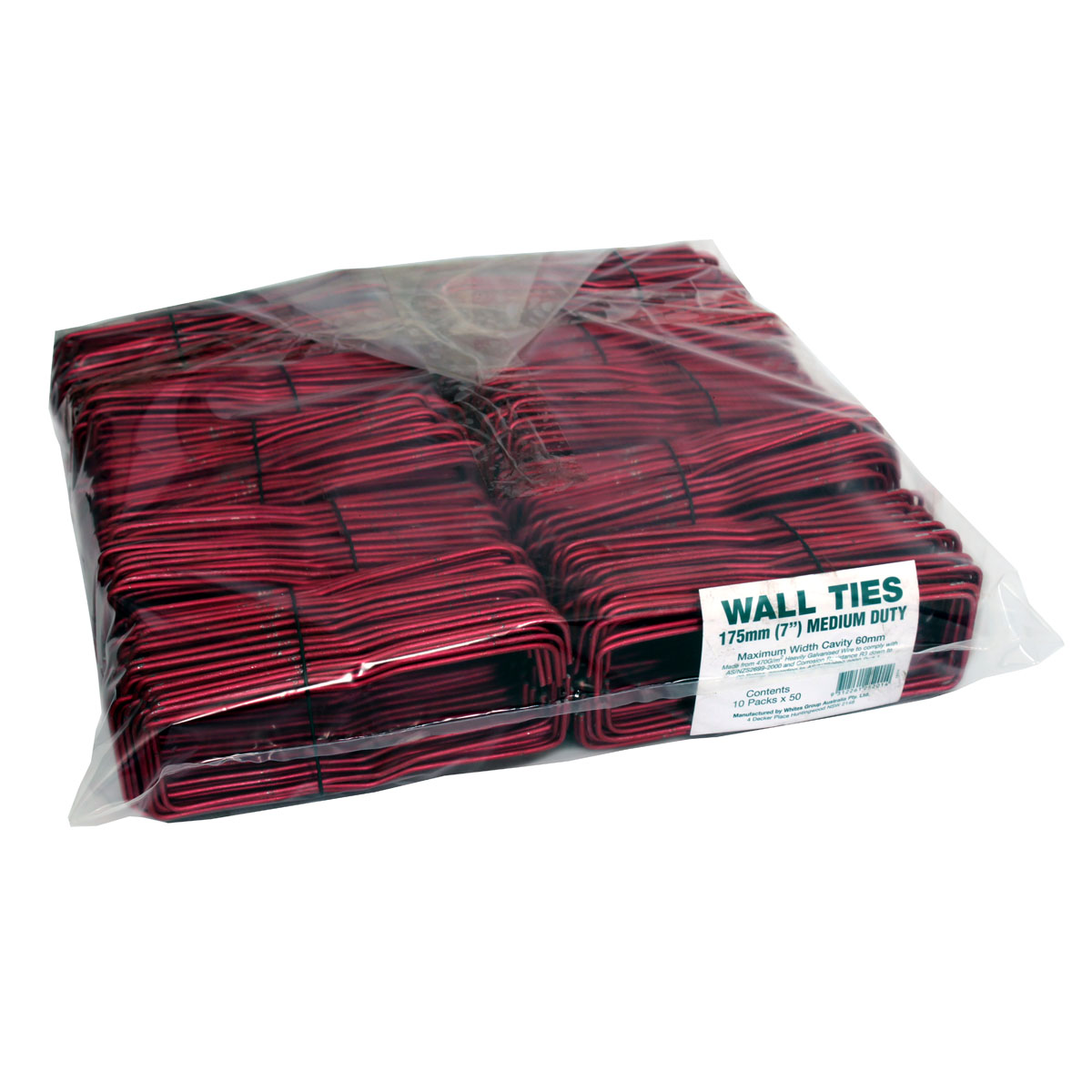

25201 - red medium pk 500 - 3.00mm x 175mm

Wall Ties

CATEGORY: Building Ties Array
• Made to the Australian Standard
• 175mm - Suits max. cavity width 60mm
• 230mm - Suits max. cavity width 120mm

Used in the construction of double brick and brick veneer walls

Red (Extra Heavy Hot Dip Galvanised)
Made from 470g/m2 heavily galvanised wire to comply with AS/NZS2699–2000 Durability classification R3 down to R0 rating according to AS/NZS2699.1:2000

Stainless Steel
Made from grade 316 stainless steel wire to comply with AS2699–2000 Durability classification R4 down according to AS/NZS2699.1:2000

CodeProduct DescriptionSizeMOQBarcode
25131Wall Ties – S/Steel Medium pack 2503.00mm x 175mm19312261251314
25201Wall Ties – Red Medium pack 5003.00mm x 175mm19312261252014
25208Wall Ties – Red Medium pack 2503.00mm x 230mm19312261252083
25209Wall Ties – Red Heavy pack 2504.00mm x 230mm19312261252090
